Batteries

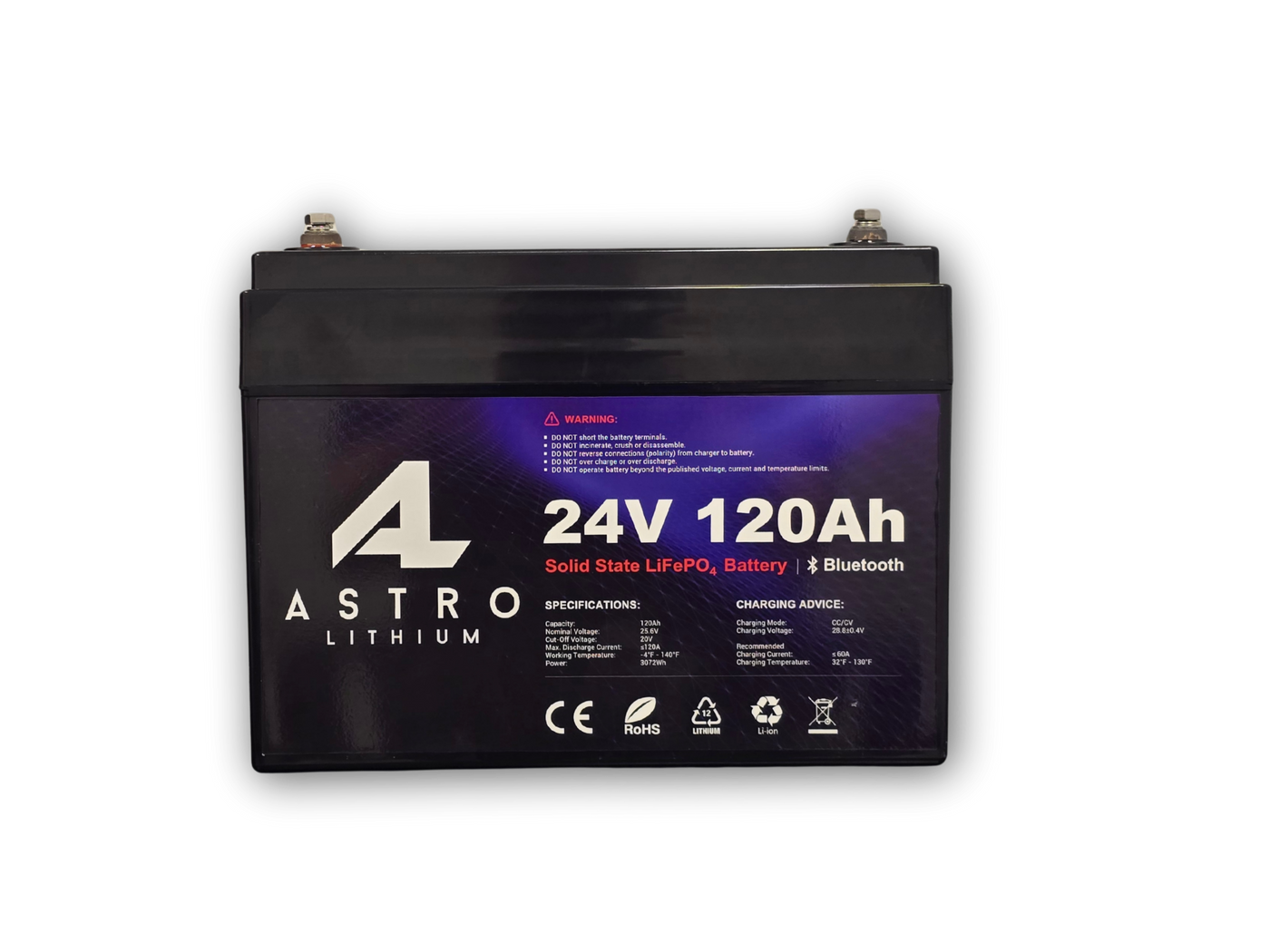

24V 120Ah Lithium Battery
Featuring solid-state lithium technology for enhanced cell stability and 50% greater cycle life.
Highlights
Specifications
- Nominal Voltage
- 25.6V
- Capacity
- 120Ah
- Energy
- 3,072 Wh
- Cycle Life
- 5,000 cycles at 100% Depth of Discharge
- Terminal Type
- M8 Stainless Steel Bolt
- Cell Type
- Grade A Cylindrical LiFePO4
- Charging Temp
- 32°F to 115°F
- Operating Temp
- -4°F to 140°F
- Max Continuous Discharge
- 100A
- Max Pulse Discharge
- 500A
Prefer to buy local?
Find an Astro Lithium dealer near you for hands-on advice and install support.
Details
Overview
Astro Lithium marine batteries use premium LiFePO4 cells and a smart onboard BMS to deliver dependable, all-day power at roughly half the weight of lead acid. With NMEA 2000 and Bluetooth monitoring built in, you can watch your state of charge right from the helm or your phone. Every battery is backed by our 8-year full replacement warranty and US-based support.
Battery Management System
Every Astro Lithium battery has an onboard BMS that handles cell balancing, charge and discharge control, and temperature protection.
NMEA 2000 & Bluetooth
Battery data streams to your helm display over NMEA 2000 and to the Astro Lithium app over Bluetooth.
Warranty & Returns
8-Year Full Replacement Warranty with no pro-rated portion, plus a 30-day money back guarantee.
Shipping
Free shipping to the lower 48. Most orders ship within one business day.
Compatibility
Tested with all major trolling motor brands.
